AJA introduced the HELO Plus, a transportable compact H.264 encoder/streamer and encoder, at NAB 2022. The HELO Plus is based on AJA Helo from 2016, but significantly expands its features. For example, it offers two streaming outputs and multi-input processing, SRT support, advanced encoding/decoding, improved scheduling options and device operation, and layouts and graphics overlays.

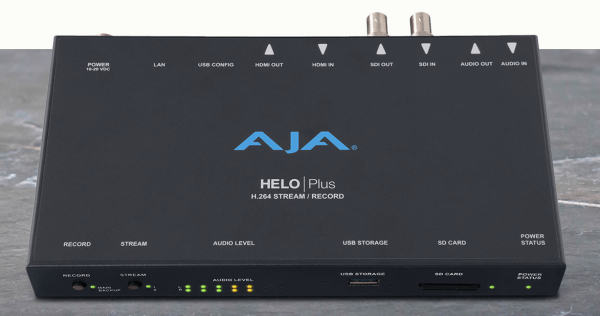

AJA HELO Plus

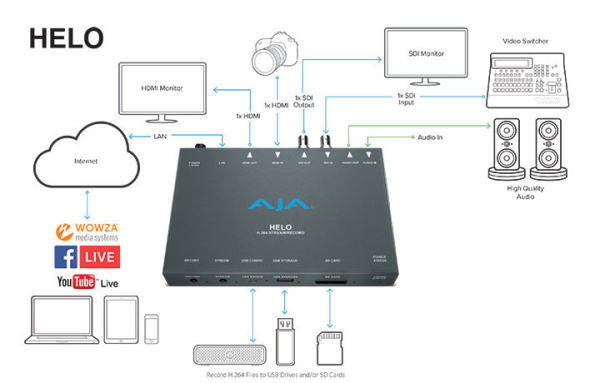

AJA HELO Plus can process a camera signal via its SDI and HDMI inputs and send it to two content delivery networks using its two encoders at up to 1080p60 in H.264 at up to 20 Mbps, or to just one and simultaneously record the video as well. It can choose to record to USB, SD card, or NFS or CIFS network storage. The dual streaming outputs allow users to create assets with different parameter settings per output (bit rate, GOP length, frame rate, frame geometry, B-frame cadence, etc.) and feed each to one of two destinations. The video material can be viewed on a monitor via the HDMI and SDI output.
With the help of the new "Layouts" feature, users can cover different production scenarios. For example, an SDI input and an HDMI input can be combined into a single output stream, and graphical overlays can be added to the composite. Each live video source can be used in its own picture-in-picture ("PiP") element and placed in its own PiP positions, with a matte background and graphics foreground element for titles and more.
AJA HELO Plus
It is then possible to seamlessly switch between layouts during a streaming session. Ten layouts are stored per preset, with 20 presets available so that set parameters can be recalled for specific events. A built-in graphics frame store allows more than 90 images to be stored in the unit&s internal memory, while an integrated scheduler, which can be accessed via a browser, allows independent recording/streaming events to be scheduled in advance of an event.
AJA HELO Plus
Integration with AJA Ki Pro
. As a complement to the AJA Ki Pro Ultra 12G and Ki Pro GO recorders, the HELO Plus can also participate in a Ki Pro "group" and act as a follow-on device that starts and stops streaming and/or recording at the command of the group leader. Alternatively, the HELO Plus can act as a leader and the Ki Pros can be set to follow, or the HELO Plus can act as a leader or follower for a group of HELO Plus devices.
Most important features of HELO Plus
. - Simultaneous H.264 HD streaming and recording - Encoding of up to 1080p60 in H.264/MPEG-4 - Web-based scheduler to set up recording and streaming events for specific dates and times without an external control system - Multiple-input video and graphics processing for creating productions with "layouts" without external switchers - Dual streaming outputs for simultaneous live streaming to multiple content delivery networks for improved resilience - Stereo analog audio output - Front panel LED audio indicators - Data rates from 100 kbps to 20 Mbps in MPEG-4 - Record to SD, SDHC, or SDXC cards, USB storage, NFS, CIFS, or SMB network volumes - Video input and output via 3G-SDI and HDMI - Support for RTP/UDP, RTSP, RTMP, RTMPS, HLS, and unicast - SRT compatibility - AV muting with support for uploading user graphics for pre-live feeds - Web-based GUI preview window - Group control for multiple HELO Plus and Ki Pro devices - 1x 3G-SDI input and 1x 3G-SDI output - 1x HDMI input and 1x HDMI output - 1x analog stereo audio input and 1x analog stereo audio output - 1x 1GigE network port for control and SMB recording/playback - 1x dedicated MicroUSB port for use with AJA Mini-Config software - 1x USB 3.2 Gen1 port (5Gb/s) for media recording and playback - 1x SD card slot for media recording and playback - External power supply with lockable connector - Three years warranty
