Blackmagic Videohub 12G: latency-free SDI router with up to 40x40 ports

Blackmagic Videohub 12G: latency-free SDI router with up to 40x40 ports

[10:43 Wed,5.April 2023   by ]

Blackmagic Design today introduced the new Blackmagic Videohub 12G model line, which allows users to simultaneously route any combination of SD, HD and Ultra HD video signals. The three Blackmagic Videohub 12G models, with 10, 20 and 40 SDI inputs and outputs respectively, feature a front panel with quick-select buttons, an LCD for displaying labels and live video, and a metal knob for browsing video sources.

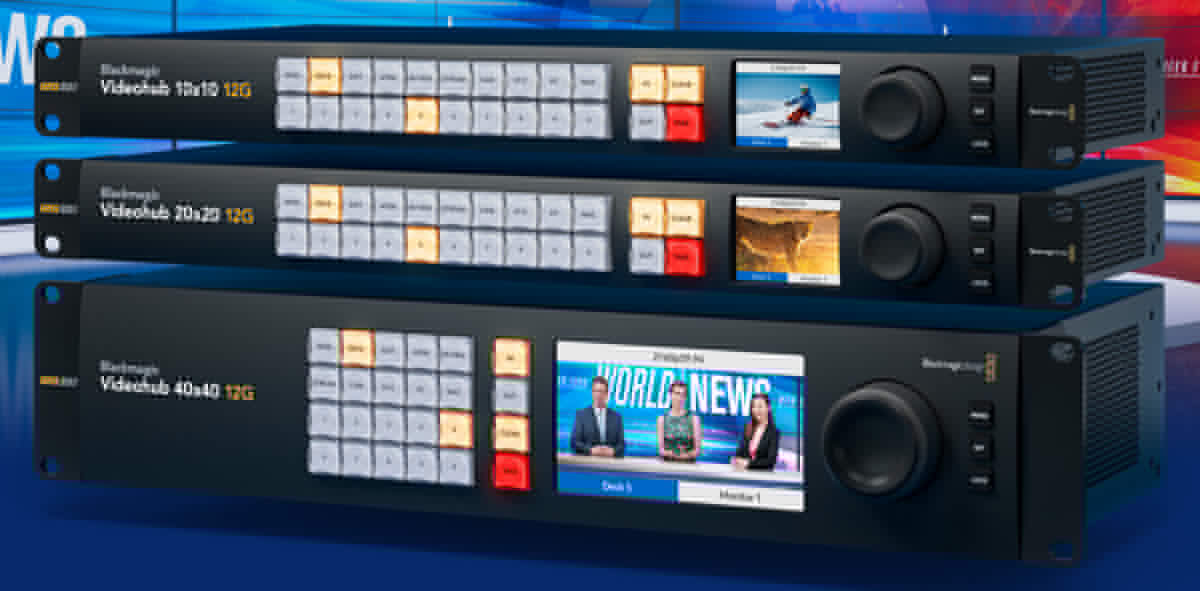

videohub-12g-models
Blackmagic Videohub 12G Models




Blackmagic wants to put an end to SDI cable clutter with the Videohub 12G router, allowing users to connect all SDI devices through the Videohub and make all desired connections via internal routing with zero latency. All video inputs can be assigned to any outputs and a single video source can also be assigned to multiple video outputs. This allows each source to be viewed on a single monitor.

Integrated Display

.
The integrated front panel allows video signals to be routed through the front panel controls without the need for additional hardware control panels. The front panel, which is similar to a Videohub Master Control Pro control panel, also has a knob for browsing, direct-entry buttons for quick work, and an LCD for label display and changing router settings - live video from all signal inputs can also be viewed on the LCD, eliminating the need for an external SDI monitor. The labels below the live video display indicate which input is currently being displayed.

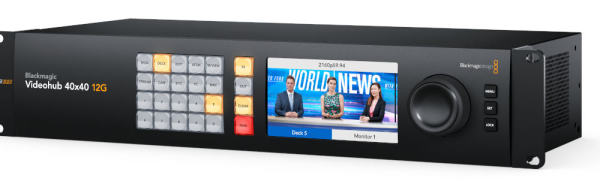

Blackmagic-Videohub-40x40-12G-Angle
Blackmagic Videohub 12G 40x40



SDI I/O


All Blackmagic Videohub 12G models are equipped with multirate 12G-SDI connectors and support SD, HD and Ultra HD video formats up to 2160p/60, making them connectable to SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI devices. Input signals in any video standard can be routed simultaneously via Blackmagic Videohub 12G - for example, with the 40x40 model, up to 40 video signals in different standards at the same time. Via 12G-SDI, Ultra HD can be transmitted at high frame rates via a single BNC connector that also connects to all regular HD equipment.

Blackmagic-Videohub-10-12G-Rear
Blackmagic Videohub 12G 10x10 I/O



Remote control via control panel or software


All Blackmagic Videohub routers are remotely controllable via two types of hardware control panels. The Videohub Master Control Pro control panel resembles the front panel of the Blackmagic Videohub 12G. It has a knob, LCD, and quick-select buttons. The Videohub Smart Control Pro version has all the buttons. It is usually configured so that the panel controls a single router output and each button is programmed for a router input. Thus, one switches directly between all router outputs by pressing a button on the panel.

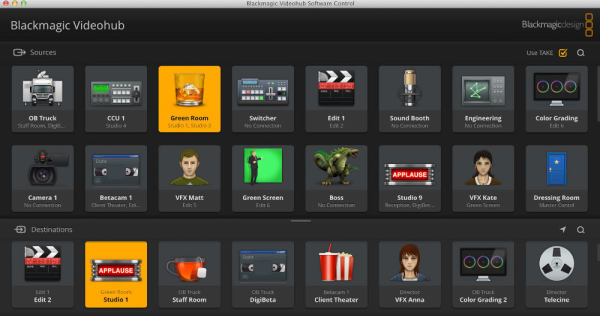

Software-control
Videohub Software Control


Alternatively, the new Videohubs 12G can also be controlled remotely via software using the free downloadable Videohub Software Control for Mac and Windows as well as IiPadOS. For easy operation, the software has large buttons that can be assigned to an input or an output of the routers and can also be operated on a PC with a touchscreen or an iPad.


Features of Blackmagic Video Assist 12G models

.
- Available in 10x10, 20x20 and 40x40 models
- 12G SDI connectors for latency-free routing and support for SD, HD and Ultra HD up to 2160p/60
- Integrated front panel with direct input buttons and knob controls
- LCD for live video display and labels for visual routing
- SDI reclocking on all 12G SDI connectors
- Works with Videohub Master Control Pro and Videohub Smart Control Pro hardware control panels
- Supports Videohub Software Control for Mac, Windows and iPads
- Includes free SDK for integration into automated broadcast systems
- Ethernet enables remote control of external hardware or software control panels
- Localized into 13 major languages

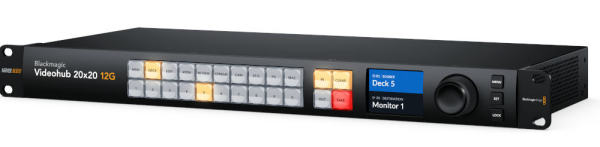

Blackmagic-Videohub-20x20-12G
Blackmagic Videohub 12G 20x20



Availability and Price


The Blackmagic Videohub 10x10 12G with 10 x 10 inputs and outputs is priced at 1,639 euros, the Blackmagic Videohub 20x20 12G is priced at
2,785 euros and the largest model, the Blackmagic Videohub 40x40 12G 4,635 euros. All devices are available now.

Link more infos at bei www.blackmagicdesign.com
