DJI Transmission: Professional radio link for monitoring and camera/gimbal control

DJI Transmission: Professional radio link for monitoring and camera/gimbal control

[17:43 Thu,29.September 2022   by ]

DJI is now shipping the DJI Transmission video radio line, introduced in June, which was developed based on the Ronin 4D&s video transmission technology and consists of a transmitter, a bright radio monitor and accessories to combine receiving, image control, steering and recording.

DJI_transmission

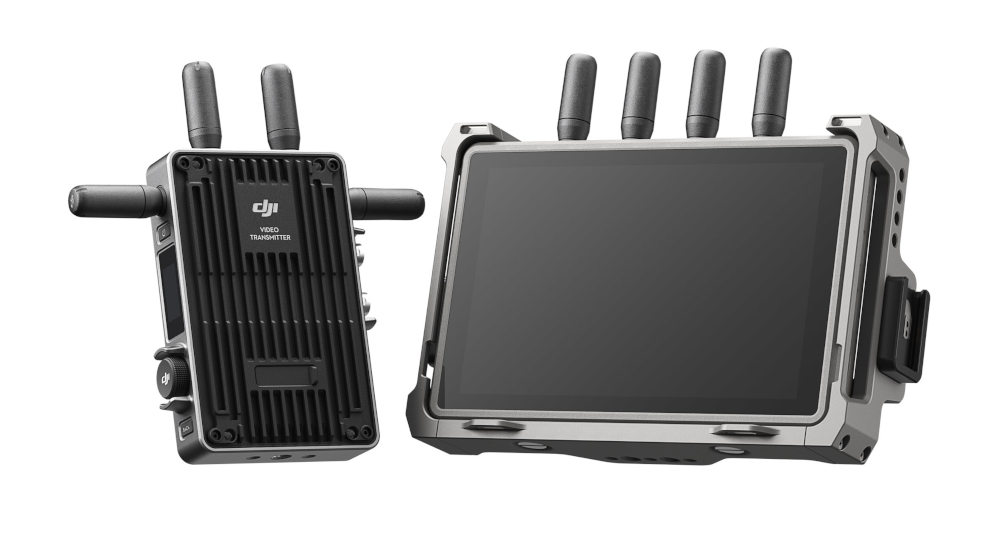

DJI Transmission Transmitter and Wireless Monitor Receiver.





The Transmission system uses (OcuSync) O3 Pro technology familiar from DJI&s drones and Ronin 4D, respectively, and allows video to be transmitted over the air over a long range of 6 km with extremely low latency, according to DJI, outperforming conventional WiFi transmission. Video is transmitted in 1080p/60fps at a maximum bit rate of 40 Mbps with live audio control at 16-bit and 48 kHz.

In addition to the traditional 2.4 GHz and 5.8 GHz bands, a DFS band has been added, providing up to 23 channels for more interference-free recording. An integrated radio scanner automatically scans the environment for the best radio channel and changes it if necessary. If needed, you can also manually select a suitable channel to avoid interference between devices.

DJI_transmission_sides

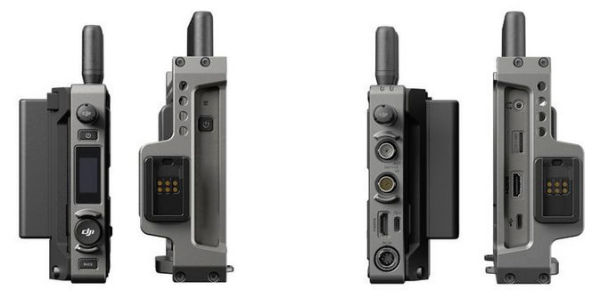

DJI Transmission Transmitter and Radio Monitor Receiver Interfaces


For wireless image control, a bright 7″ radio monitor is included with 1,500 nits and an integrated receiver. It supports a transmitter with multiple receivers, as well as two transmission modes - in control mode, monitoring can be done by two receivers simultaneously, and the gimbal and camera can also be controlled remotely. Large teams can activate a transmission mode in addition to the control mode, allowing for an unlimited number of receivers. For large sets, DJI Transmission can operate simultaneously with ten or more transmitters sending signals to ten devices for transmission.

DJI_transmission_action

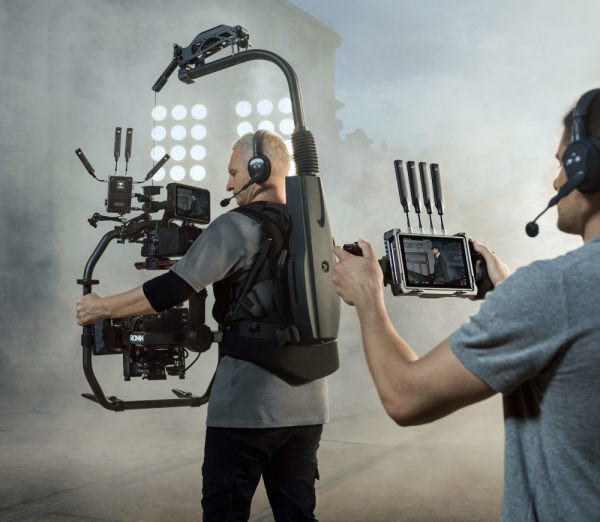

DJI Transmission transmitter and radio monitor receiver.



Interfaces

.
The video transmitter has a 3G-SDI loop-out connector through which 1080p/60fps video can be output, as well as a 3G-SDI input (1080p60) and an HDM 1.4 Type-A input. Supports output of 1080p/60fps video. The wireless monitor has a 3.5mm stereo jack for audio monitoring, a microSD card slot for recording video, an HDMI 2.0 Type-A input (4K/60fps), a USB-C port for webcam functionality and firmware updates, and - but only via an optional expansion board - also a 3G-SDI and an HDMI 1.4 Type-A output (1080p/60).

DJI_transmission_freq

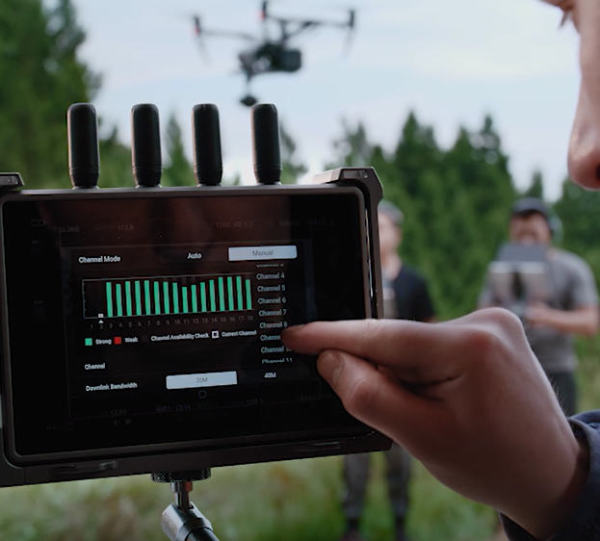

DJI Transmission Frequency Adjustment


As with the Ronin 4D, DJI Transmission can also be used as a comprehensive control system. When used with the RS 3 Pro, it can act as a gimbal and camera controller, unlocking more features. Thanks to the integrated gyroscope, control can be haptic, i.e. based on the monitor&s position in space. The wireless monitor can also be connected to the Ronin 4D handgrips, DJI Master Wheels, DJI Force Pro or the new DJI Three-Channel Follow Focus to enable more complex remote-controlled shooting. In addition to simultaneous access to video time codes, the DJI wireless monitor allows independent recording and playback of 1080p/60fps H.264 video.

DJI_transmission_freq
DJI Transmission Frequency Adjustment



Price and Availability


The DJI Transmission Combo costs 2,299 euros and is available now. The combo consists of a DJI video transmitter, a bright DJI radio monitor including an aperture, an installation package, a hard case, two WB37 Intelligent Batteries, a WB37 battery charging station, and various cables and battery adapters. The video transmitter is also available separately for 1099 euros.


Bild zur Newsmeldung:
DJI_transmission_combo

Link more infos at bei www.dji.com
