DZOFilm PAVO, new 2x anamorphic cine lenses for Super35

DZOFilm PAVO, new 2x anamorphic cine lenses for Super35

[17:58 Fri,15.September 2023   by ]

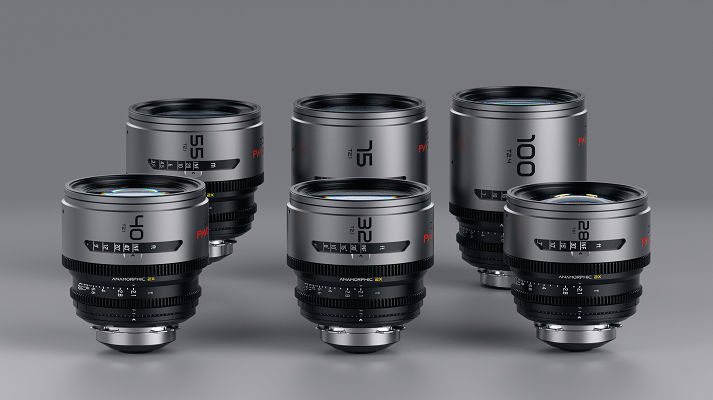

Chinese lens manufacturer DZOFilm presents a new line of anamorphic cine lenses, Pavo. It consists of 6 lenses (28mm, 32mm, 40mm, 55mm, 75mm | T2.1 and 100mm | T2.4) and is calculated for a Super35 image circle. However, with the help of DZOFilm&s Marlin Expander, they can also be used on full-frame cameras.

DZOfilm_PAVO_anamorphoten
DZOFilm PAVO, anamorphic cine series


The PAVO lenses feature a 2x compression factor and are available with two different coatings (neutral or blue coating). Accordingly, the light reflections turn out neutral or rather cool. The aperture consists of 16 blades, except for the 28mm, where there are 14.

PAVO_drone




Weighing between 1.2 to 1.6 kg and with a front diameter of 95mm, the PAVO cine anamorphics are well portable and also suitable for drone and Steadicam shooting. However, they are not exactly uniform in construction, with build lengths of 106.3mm / 105.7mm / 107.6mm / 108.4mm / 126.9mm / 143.1mm.

dzofilm_PAVO


The focus path is 270°, which is slightly shorter than generally typical for cinemas, and the minimum focusing limits are between 0.4m-0.95m depending on the focal length. The lenses have an integrated flange focal length adjustment, which allows precise adaptation to different cameras or connections. Focus breathing is said to be negligible, and chromatic aberrations few.

The DZOFilm PAVO anamorphic lenses are available with PL-/EF-Mount for 5,099.00 Euro plus VAT each (from beginning of October).

PAVO_hard_case


Link more infos at bei dzofilm.com
