New 1” CMOS sensor Omnivision OV50X to offer 18 f-stops of dynamic range
[11:06 Thu,17.April 2025 by blip]
Für Kameras in Highend-Smartphones hat Omnivision einen neuen 1"-CMOS-Sensor vorgestellt, der ein besonders gutes Dynamikverhalten für HDR-Videoaufnahmen bieten soll. Der Hersteller gibt einen Wert von 110 dB an, eine Einheit, die eher bei Industriesensoren üblich ist und etwa 18 Blendenstufen entspricht; beim Vorgänger sollen es etwa 90 dB gewesen sein. Um dies zu erreichen, greift Omnivision auf seine TheiaCel-Sensortechnologie zurück, die u. a. für Kameras von selbstfahrenden Autos entwickelt wurde, bei denen es auf gute Nachtsichtfähigkeiten ankommt, damit sie leuchtende Straßenschilder auch in dunkler Umgebung korrekt erkennen können.

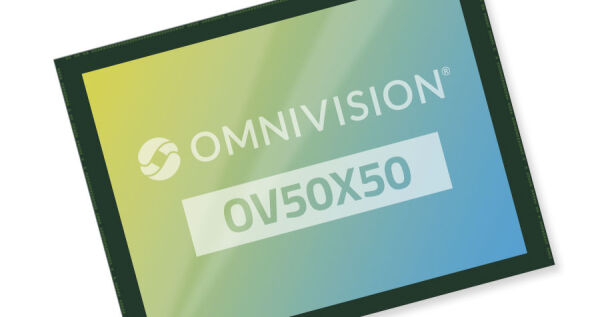

Omnivision OV50X
Der neue 50MP-Sensor OV50X (8192 x 6144) bietet eine Sensorpixelgröße von 1,6 µm und unterstützt einerseits ein Vierfach-Pixel-Binning auf 12,5 MP bei 180 fps, andererseits HDR mit 60 fps. Video-HDR wird über eine dreifache Auswertung der Pixel erzielt, Dual-Analog-Gain (DAG) gepaart mit "LOFIC", was für "Lateral Overflow Integration Capacitor" steht. Dabei werden mehr Fotoelektronen gespeichert, indem Überlaufelektronen in einem großen Kondensator in jedem Pixel gesammelt werden. 8K kann der Sensor mit maximal 30 fps auslesen.
Dank einer Quad-Phasenerkennung (QPD) mit 100 % Abdeckung soll auch die Autofokusleistung auf hohem Niveau liegen. Der Sensor soll im dritten Quartal in die Massenproduktion gehen und könnte also einige Monate später in ersten Smartphones auftauchen.
For cameras in high-end smartphones, Omnivision has introduced a new 1" CMOS sensor that is said to offer particularly good dynamic range for HDR video recording. The manufacturer specifies a value of 110 dB, a unit that is more common for industrial sensors and corresponds to approximately 18 stops; the predecessor was said to have around 90 dB. To achieve this, Omnivision relies on its TheiaCel sensor technology, which was developed, among other things, for cameras in self-driving cars, where good night vision capabilities are important so that they can correctly recognize illuminated traffic signs even in dark environments.
Omnivision OV50X
The new 50MP sensor OV50X (8192 x 6144) offers a sensor pixel size of 1.6 µm and supports, on the one hand, four-fold pixel binning to 12.5 MP at 180 fps, and on the other hand, HDR at 60 fps. Video HDR is achieved via a triple readout of the pixels, dual-analog-gain (DAG) paired with "LOFIC," which stands for "lateral overflow integration capacitor." More photoelectrons are stored by collecting overflow electrons in a large capacitor in each pixel. The sensor can read out 8K at a maximum of 30 fps.
Thanks to quad phase detection (QPD) with 100% coverage, the autofocus performance should also be at a high level. The sensor is scheduled to go into mass production in the third quarter and could therefore appear in the first smartphones a few months later.
