PortKeys PT6: Affordable 5.2

[10:45 Mon,7.November 2022 by Thomas Richter]

Camera accessory specialist PortKeys has introduced the PT6, a new affordable external camera monitor that offers numerous assistance functions for image control as well as the option of displaying the live video signal with its own 3D LUTs.

The IPS panel of the 5.2" FullHD touchscreen has a brightness of 600 nits and covers the professional DCI-P3 color space to 100%. A video signal with up to DCI 4Kp24 or Ultra HD 4Kp30 is accepted from the camera via HDMI, and a 1080p60 signal - for example to a larger monitor or a live streaming encoder - is output via HDMI.

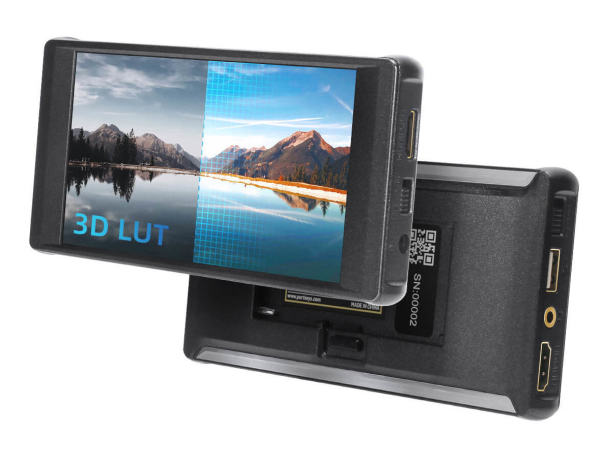

PortKeys PT6 OnCamera Monitor

The Portkeys PT6 Live Streaming Assist Monitor can output both the user interface and the input image with a 3D LUT. Likewise, the brightness, hue, or contrast of the output signal can be adjusted, the aspect ratio can be changed when using anamorphic lenses, or - when filming vertically - the preview image can be stretched for proper display.

Also on board are the usual image monitoring features such as RGB and luma waveforms, luma histogram, zebra, false color, focus zoom, individual peaking or the ability to crop the camera image. The PortKeys PT6 gets power either mobile from a Canon LP-E6 or Sony NP-F battery attached to the back, or stationary via 7-24V DC input. There is also a USB Type-A port for firmware updates and charging LUTs.

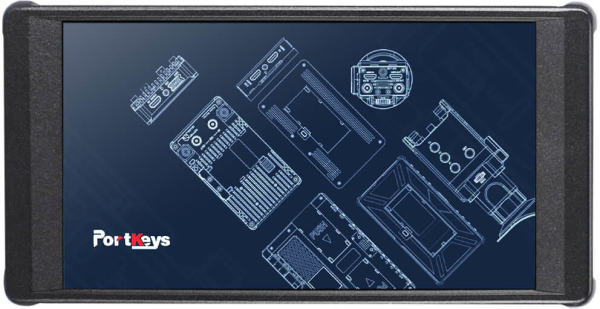

PortKeys PT6 Camera Monitor

The key features of the PortKeys PT6

.
- 5.2" Display with 600 nits brightness and 100% DCI-P3 color space coverage.
- 4K HDMI 30p HDMI input
- 1080P60 HDMI output
- Peaking frame, wireframe protection, image cropping

PortKeys PT6 Camera Monitor

Monitoring features

.
- 3D LUTs, anamorphic calibration.
- Vertical extension for portrait mode
- Exposure: RGB and luma waveforms
- Luma histogram, zebra
- ARRI false color, false color
- Focus: zoom functions, individual peaking
- Cropping: Custom cropping to display image details
- Framing: Control panel, grid, image inversion, and crosshairs
- Display: Anamorphic, color temperature, contrast and sharpness.
- Display: Brightness, hue, backlight, and underscan
- Battery: Remaining power
- Sound: Exposure metering

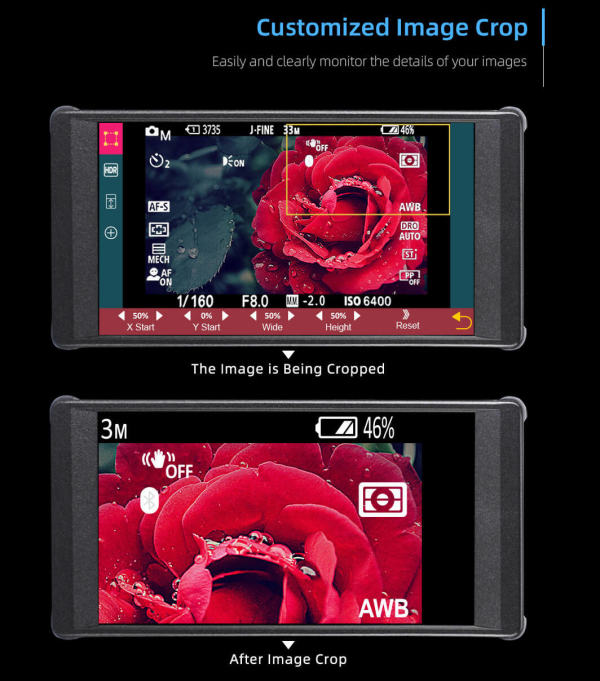

PortKeys PT6 camera monitor crop function

Functionality on HDMI output

- User interface output
- 3D LUTs, anamorphic calibration
- Vertical extension for portrait mode
- Adjustment of image brightness, hue as well as contrast adjustment

Price and Availability

The Portkeys PT6 Live Streaming Assist Monitor is available now for .

more infos at bei www.portkeys.com
