Teradek Bolt 4K LT HDMI: Latency-free 4K HDR video wireless link for HDMI cameras

[12:16 Mon,2.May 2022 by Thomas Richter]

Teradek introduced at NAB 2022 the Bolt 4K LT HDMI video wireless link, which replaces and improves upon the Teradek ACE 500 shown 3 years ago. The Bolt 4K LT HDMI system is a pure HDMI solution with a very low latency of only less than 0.001 seconds and consists of a transmitter and a receiver that can transmit uncompressed 10-bit 4Kp30 HDR video along with audio and timecode up to a distance of 228 meters in clear view. They use the same compact aluminum housing and offer the same wireless interoperability as the rest of the Bolt 4K series. Unauthorized access of the transmission is prevented via AES-256 encryption.

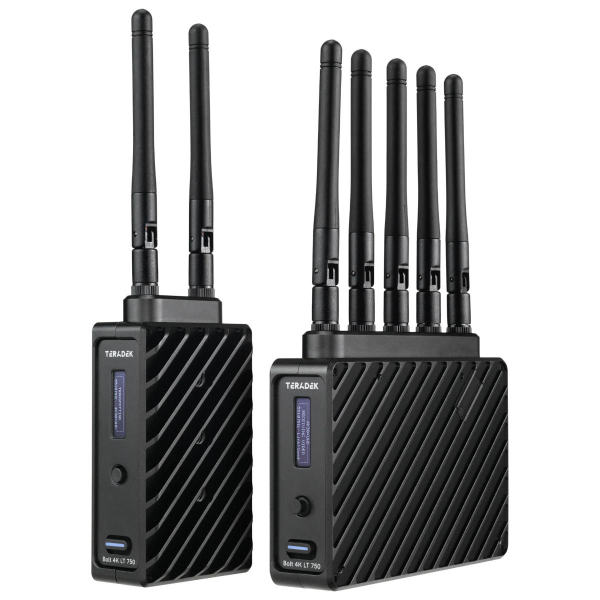

Teradek Bolt 4K LT HDMI

The Teradek Bolt 4K LT HDMI 750 TX transmitter gets its input from the camera via HDMI and can pair with up to six receivers, offering very fast pairing and setup using the Bolt Manager app (iOS and Android), which also allows device management, LUT output setting, and wireless monitoring. Via HDMI Loop Out, another device such as a camera monitor can be connected.

The Teradek Bolt 4K LT HDMI 750 RX wireless link receiver provides output of 4K30p HDR video over HDMI and is compatible with any Bolt 4K series transmitter.

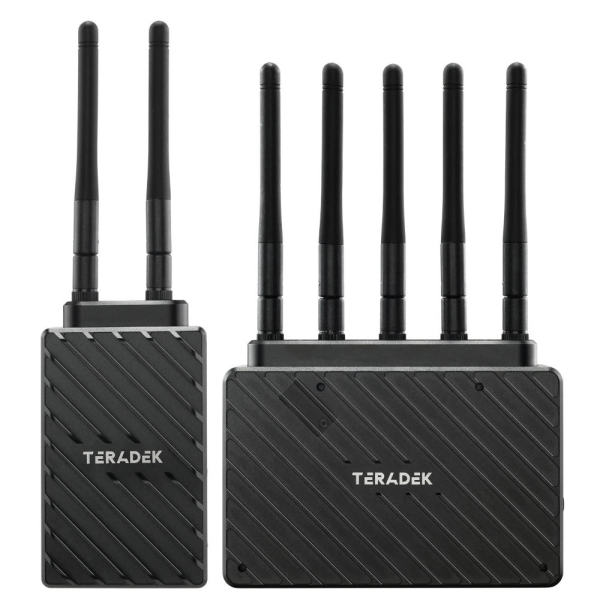

Teradek Bolt 4K LT HDMI

Transmitter and receiver both feature OLED displays complete with joystick navigation, as well as multiple M3 and 1/4-20" holes that provide various mounting options.

Main Features

- Transmission range up to 228 meters in clear view.
- Low latency. approx. 0.001 seconds
- supports up to 4Kp30 (HDMI)
- supports Rec 2020 HDR in 10-bit 4:2:2 color space
- coupling with up to 6 receivers possible
- AES-256 encryption
- compatible with any transmitter of the Bolt 4K series
- Non-DFS frequencies: 5.190 ~ 5.230 and 5.755 ~ 5.795 GHz
- DSF frequencies: 5.270 ~ 5.670 GHz
- transmits metadata, timecode and start/stop flags of most camera types
- HDMI 2.1 input
- HDMI 2.1 output plus HDMI Loop Out
- Teradek Bolt App for Android and Apple iOS

Teradek Bolt 4K LT HDMI

Price and availability of the Teradek Bolt 4K LT video wireless link

.
The Teradek Bolt 4K LT HDMI transmitter and receiver cost around €1,300 each individually or around €2,400 together in a set without the battery plate and around €2,725 with either gold or V-mount.

more infos at bei teradek.com
